Cast Brass 12V Outdoor Step Light I972195
Sale price
$19.95
Regular price $67.94
Skip to product information
UL/cUL LISTED - VOLT products are UL Listed for safety; most competitors' landscape lighting products on Amazon are not.
PROFESSIONAL GRADE – Rated for in-grade concrete pour applications. Ideal when you need a recessed wall fixture that produces a general area illumination for ramps or walkways next to stone walls, retaining walls and nooks around outdoor kitchens.
COMPLETELY SEALED & WATERTIGHT – Even the canister (back box) is solid cast brass. Other manufacturers use folded sheet metal boxes, which is not watertight. Features a rubber seal around the 4-foot lead wire exit and pressure fit rubber gaskets around openings.

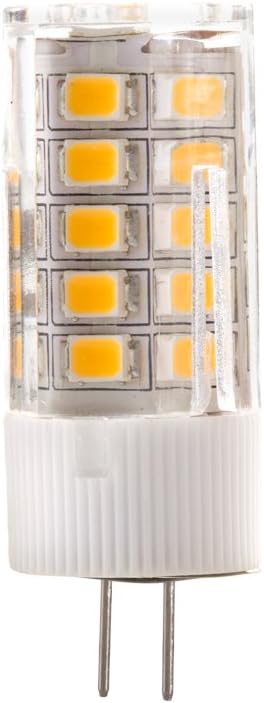

OPTIMAL ILLUMINATION - Flat faceplate with no louvers or shades. Frosted lens reduces glare and gives softer illumination. Accepts LED or halogen bi-pin bulbs (not included).
LIFETIME WARRANTY – VOLT Lighting extends an industry-best lifetime warranty on its brass fixtures. Using state-of-the-art components, our professional grade products are built to the highest standards of construction and performance, and are field tested for durability and ease of installation.
Tools & Home Improvement Lighting & Ceiling Fans Outdoor Lighting
Cast Brass 12V Outdoor Step Light I972195
Sale price
$19.95
Regular price $67.94
Shipping calculated at checkout.
PROFESSIONAL GRADE – Rated for in-grade concrete pour applications. Ideal when you need a recessed wall fixture that produces a general area illumination for ramps or walkways next to stone walls, retaining walls and nooks around outdoor kitchens.
COMPLETELY SEALED & WATERTIGHT – Even the canister (back box) is solid cast brass. Other manufacturers use folded sheet metal boxes, which is not watertight. Features a rubber seal around the 4-foot lead wire exit and pressure fit rubber gaskets around openings.
OPTIMAL ILLUMINATION - Flat faceplate with no louvers or shades. Frosted lens reduces glare and gives softer illumination. Accepts LED or halogen bi-pin bulbs (not included).
LIFETIME WARRANTY – VOLT Lighting extends an industry-best lifetime warranty on its brass fixtures. Using state-of-the-art components, our professional grade products are built to the highest standards of construction and performance, and are field tested for durability and ease of installation.
| VOLT Lighting 100W Slim Line Low Voltage Transformer | VOLT Lighting 150W Slim Line Low Voltage Transformer | VOLT Lighting 300W Slim Line Low Voltage Transformer | VOLT Lighting 150W Clamp Connect Low Voltage Transformer with Digital Timer | VOLT Lighting 300W Clamp Connect Low Voltage Transformer with Digital Timer | VOLT Lighting 600W Clamp Connect Low Voltage Transformer with Digital Timer | |
|---|---|---|---|---|---|---|
| Construction | Non-brushed 304 stainless steel with removable cover | Non-brushed 304 stainless steel with removable cover | Non-brushed 304 stainless steel with removable cover | Non-brushed 304 stainless steel with removable cover | Non-brushed 304 stainless steel with removable cover | Non-brushed 304 stainless steel with removable cover |
| Power Cord | 60″ Black SJTW Water Resistant VW-1 OR FT1 105° C 300V 18AWGX3C UE-321 | 60″ Black SJTW Water Resistant VW-1 OR FT1 105° C 300V 18AWGX3C UE-321 | 60″ Black SJTW Water Resistant VW-1 OR FT1 105° C 300V 18AWGX3C UE-321 | 60″ black 18 AWG SJTW cord and plug set | 60″ black 18 AWG SJTW cord and plug set | 60″ black 18 AWG SJTW cord and plug set |
| Certification | ETL Listed for both indoor and outdoor use | ETL Listed for both indoor and outdoor use | ETL Listed for both indoor and outdoor use | ETL Listed for both indoor and outdoor use | ETL Listed for both indoor and outdoor use | ETL Listed for both indoor and outdoor use |
| Maximum Draw | 100W | 150W | 300W | 150W | 300W | 600W |
| Input | 120V 60Hz | 120V 60Hz | 120V 60Hz | 120V 60Hz | 120V 60Hz | 120V 60Hz |
| Voltage Tap Outputs | 15V (UL 1838 compliant) | 12V & 15V (UL 1838 compliant) | 12V & 15V (UL 1838 compliant) | 12V & 15V (UL 1838 compliant) | 12V & 15V (UL 1838 compliant) | 12V & 15V (UL 1838 compliant) |
| Timer/Photocell or Digital Timer | Timer/Photocell | Timer/Photocell | Timer/Photocell | Digital Timer | Digital Timer | Digital Timer |
| Circuit Protection | Primary: Automatic (auto reset) Thermal Breaker in core; Secondary: (1) 7A Magnetic Circuit Breaker | Primary: Automatic (auto reset) Thermal Breaker in core; Secondary: (1) 12.5A Magnetic Circuit Breaker | Primary: Automatic (auto reset) Thermal Breaker in core; Secondary: (1) 25A Magnetic Circuit Breaker | Primary: Automatic (auto reset) Thermal Breaker in core; Secondary: (1) 25A Magnetic Circuit Breaker | Primary: Automatic (auto reset) Thermal Breaker in core; Secondary: (1) 25A Magnetic Circuit Breaker | Primary: Automatic (auto reset) Thermal Breaker in core; Secondary: (2) 25A Magnetic Circuit Breakers |
| Dimensions | 14.40″ height, 5.27″ width, 3.70″ depth | 15.33″ height, 5.5″ width, 3.70″ depth | 15.33″ height, 5.5″ width, 3.70″ depth | 13.19' height x 6.00' width x 5.41' depth | 14.56' height x 7.13' width x 5.90' depth | 15.81' height x 8.25' width x 7.16' depth |
| Weight | 10 lbs | 13 lbs | 13 lbs | 13 lbs | 13 lbs | 21 lbs |
